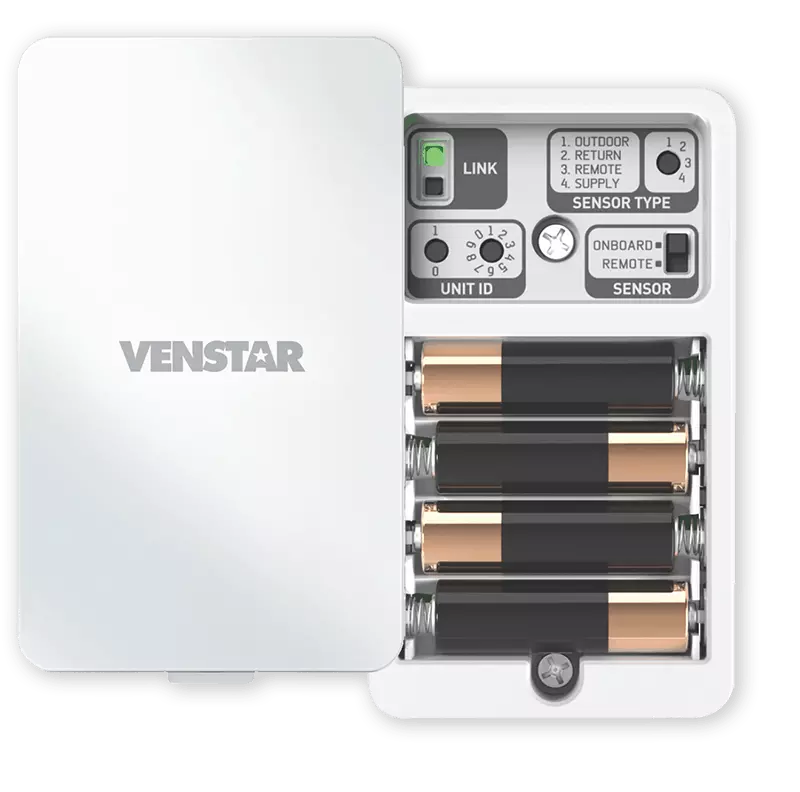

Wi-Fi Temperature Sensor

Installation Manual » Sales Sheet » Submittal »

Product Overview

  • Compatible with Explorer (T3700, T3800, T3900, T4700, T4800, T4900, T4900SCH).
  • Compatible with ColorTouch (T7850, T7900, T8850, T8900).
  • Setup using the Configurator App
Where to Buy

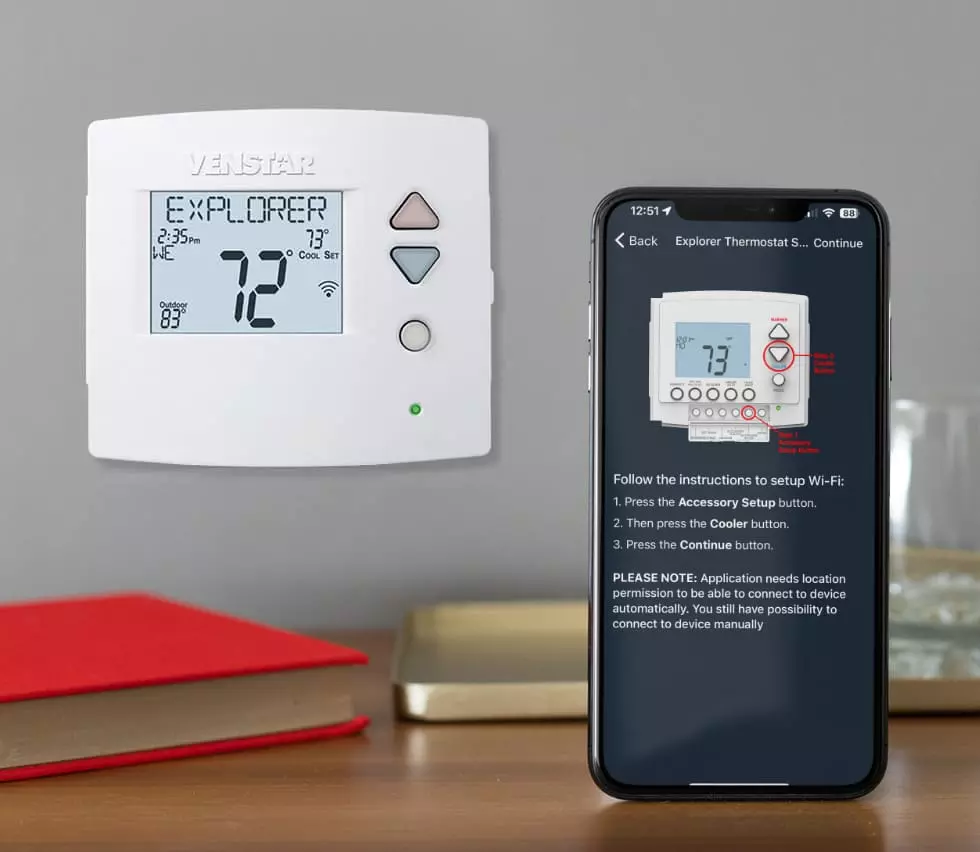

Pair to your Explorer thermostat:

1. After successfully connecting the sensor to the access point, momentarily press and release the Link button of the Wi-Fi sensor. The LED will stay on for up to 2 seconds, then turn off.

2. Open the ‘small, inside door’ of the Explorer thermostat.

3. Press the Accessory Setup button.

4. Press the Mode button.

5. Upon successful pairing the thermostat display will acknowledge the paired sensor, along with the sensor’s ID.

To Unpair the Wi-Fi sensor from the Explorer thermostat:

1. Open the ‘small, inside door’ of the Explorer thermostat.

2. Press the Accessory Status button.

3. Press the Cooler (down arrow) button.

4. If you have more than 1 sensor press the Mode button until the sensor you wish to unpair is displayed.

5. Simultaneously press the Warmer (up arrow) and Cooler (down arrow) buttons.

6. The thermostat display will acknowledge the sensor unpaired.

Pair to your ColorTouch thermostat:

1. After successfully connecting the sensor to the access point, momentarily press and release the Link button of the Wi-Fi sensor. The LED will stay on for up to 2 seconds, then turn off.

2. Press ‘Menu’ on the bottom right of the ColorTouch display.

3. Select ‘Settings”. (you may need to scroll down to Settings)

4. Select ‘Installation Settings’. (you may need to scroll down to Installation Settings)

5. Select ‘Sensor Settings’.

6. Select ‘Wireless Sensors’.

7. Select ‘Add New Sensor’.
